IntelliRide Handheld Calibration - as easy as 1 - 2 - 3

Date:Thu, January 09, 2014 , 11:21AM

Did you know....

...Calibration and height setting is possible on all IntelliRide Gen III Systems via the handheld device  -  no need for PC software Tool anymore.

It's as easy as 1 - 2 - 3 . . .

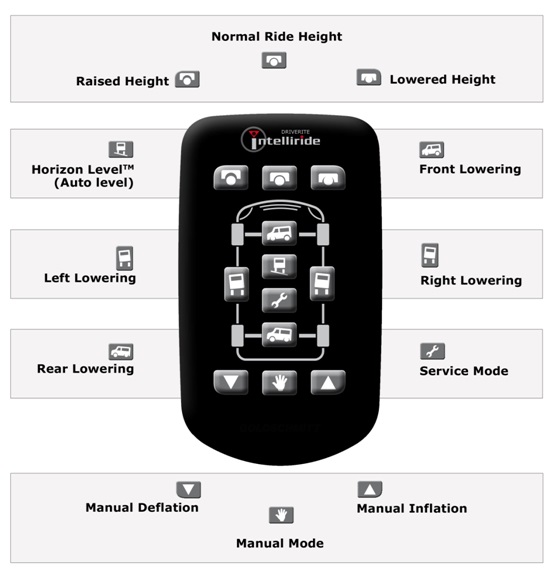

Step 1:     Press the "Manual Mode" button

Step 2:     Press the following buttons in this order to enter program mode -

  •     Raised height
  •     Standard height
  •     Lowered height

Step 3:     Select which side of the vehicle you wish to move (Front / Rear / Left / Right)

Step 4:     Adjust the vehicle height using the "Manual Inflation" and "Manual Deflation" buttons

Step 5:     Press the "Service Mode" button

Step 6:     Press and hold for 10 seconds the automatic height you want to save (Standard, Raised or Lowered).

The height button you are pressing will light, then the 4-‘wheels’ on the hand held will light up to indicate the height has been saved. Only then can the button be released.


Windows PC Tool

Please note that the simple to use PC Tool is still available upon request. This tool is particularly useful for vehicle converters who prefer to carry out calibration and height settings using this method.
