3 Series Sprinter / Crafter Semi Air Suspension Kit

Product Code: DR.02.003502

Specifications

Cross Reference Kit Number W21-760-3502
European / US Vehicle Europe
Average Installation Time 1 - 2 hours

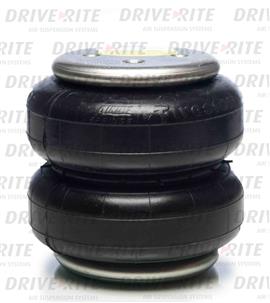

Air Spring Style Double Convolute
Air Spring Part No. DR.07.016694
Kit Weight 12 Kg



Applications

Mercedes-Benz Sprinter 906/907 2006-2016
Mercedes-Benz Sprinter 906/907 2017-Current
Volkswagen Crafter 2006-2016

Special Notes

All Applications, vehicles with rear overhang up to 2.015m

Downloads



Click thumbnail to view detailed image.

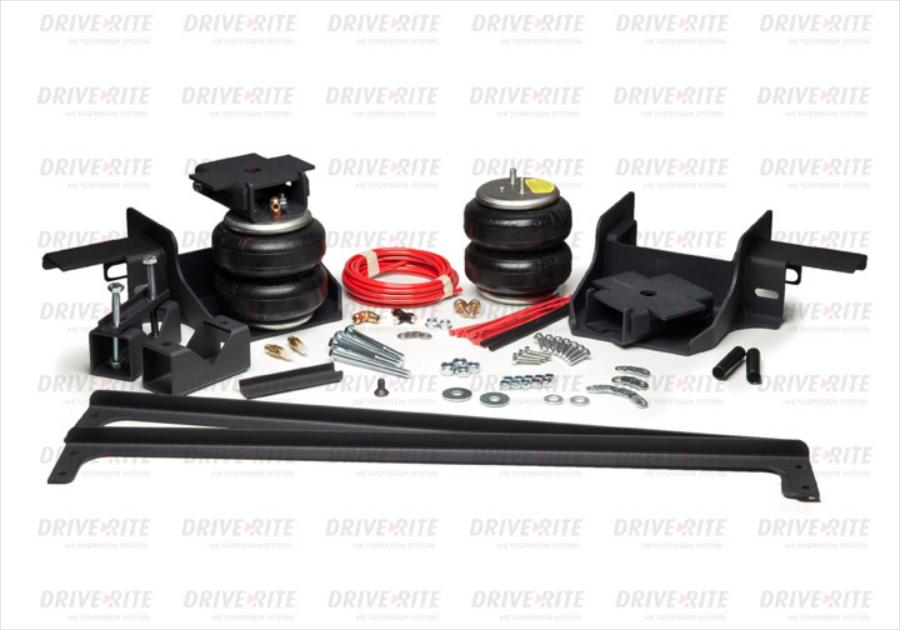

Air springs, brackets, hardware, air line, and separate valves for manual inflation are all included for a straightforward installation.



DR.02.003502 Air Helper Suspension Kit offers:

INCREASED SAFETY

GREATER SECURITY

MORE COMFORT

MAINTAIN CORRECT VEHICLE HEIGHT

Improve steering control and braking effectiveness, level headlight beams and reduce tyre wear.

LEVEL OFF-CENTRE LOADS

Individual inflation valves allow for adjustment side-to-side.

NO MORE SPRING SAG

Keep leaf springs from permanent sagging under repeated or constant load.

SAFER LOAD CARRYING

Protective air cushion softens contact between the axle and frame.

IMPROVED STEERING & HANDLING

Absorbing road shock providing ideal ride conditions for passengers and load.

EUROPEAN DESIGNED, MANUFACTURED, TESTED & APPROVED

All our kits are designed, manufactured, tested and approved to the highest standard.
